Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power Suitable for 5G WiFi 6 Satellite and Radar System Applications

Quality Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power Suitable for 5G WiFi 6 Satellite and Radar System Applications for sale

Brand Name : PTC

Model Number : PTC-A2560-50W

Certification : QS,CE

Place of Origin : Shenzhen China

MOQ : 1pcs

Price : Neg

Payment Terms : Western Union, T/T, L/C, D/A, D/P

Supply Ability : 50000/M

Delivery Time : 3-30days

Packaging Details : Carton Packing

Contact Now

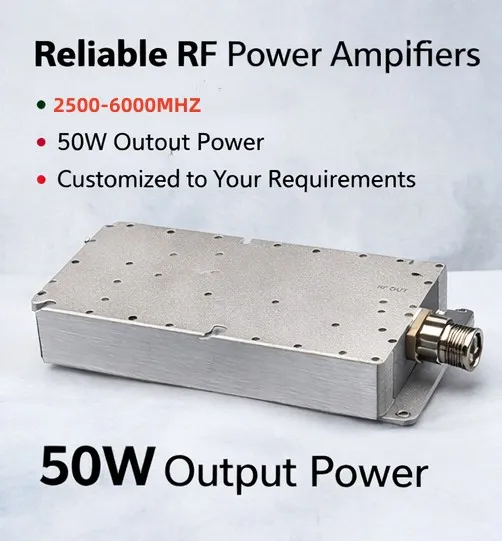

Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power

This 2500-6000MHz RF Module is a 50W power amplifier module designed for 5G, WiFi 6, satellite, and radar system applications. The module operates without requiring an external signal source.

Key Features

Ultra-Wideband Performance: Seamless coverage from 400MHz to 3000MHz, eliminating the need for multiple narrow-band amplifiers
Advanced GaN Technology: Utilizes high-efficiency Gallium Nitride on Silicon Carbide (GaN-on-SiC) devices for superior power density and thermal management
Built-in Protection: Includes integrated circuitry for over-temperature protection and VSWR (Voltage Standing Wave Ratio) protection to prevent damage from signal reflection
Compact & Rugged: Housed in a precision-machined aluminum alloy chassis, designed to withstand harsh industrial andall relative environments
Customizable: Frequency range and output can be customized per request

Applications

Electronic Countermeasures (ECM): Ideal for signal jamming and broad-spectrum interference systems
Test & Measurement: A reliable lab-grade power source for EMC testing and antenna measurements
Communication Systems: High-power booster for 5G, Wi-Fi 6, and satellite ground stations
Radar Systems: Pulse and CW (Continuous Wave) applications for modern radar detection

Technical Specifications

Parameter	Specification
Frequency Range	2500-6000MHz
Output Power (P_sat)	≥50W
Gain	≥50dB
In-band Gain Flatness	≤5.0dB
Working Current	≤5.5A
Connector	SMA-Female
Power Supply & Control Interface	DB7W2
VCC Power Supply & Maximum Voltage	+28V, +32V
Dimension	180×90×25mm (Not including connectors)
Net Weight	1kg
Power Supply Wire	Red+Black+Enable wire
Working Temperature	-40℃ to +55℃
